Ground-Mount Solar Structures
Fixed-tilt ground-mount structures for commercial and utility-scale PV projects — from single-post to triple-post systems, configured to layout, pitch and row spacing.
Foundations are selected against the ground itself — driven pile, ground screw, concreted, ballasted or anchored — with geotechnical and site survey data informing the structural design where available.
Single, twin & triple post
Foundations for any terrain
Engineered per site
Configurations
Post configuration is selected against array size, terrain and ground conditions.

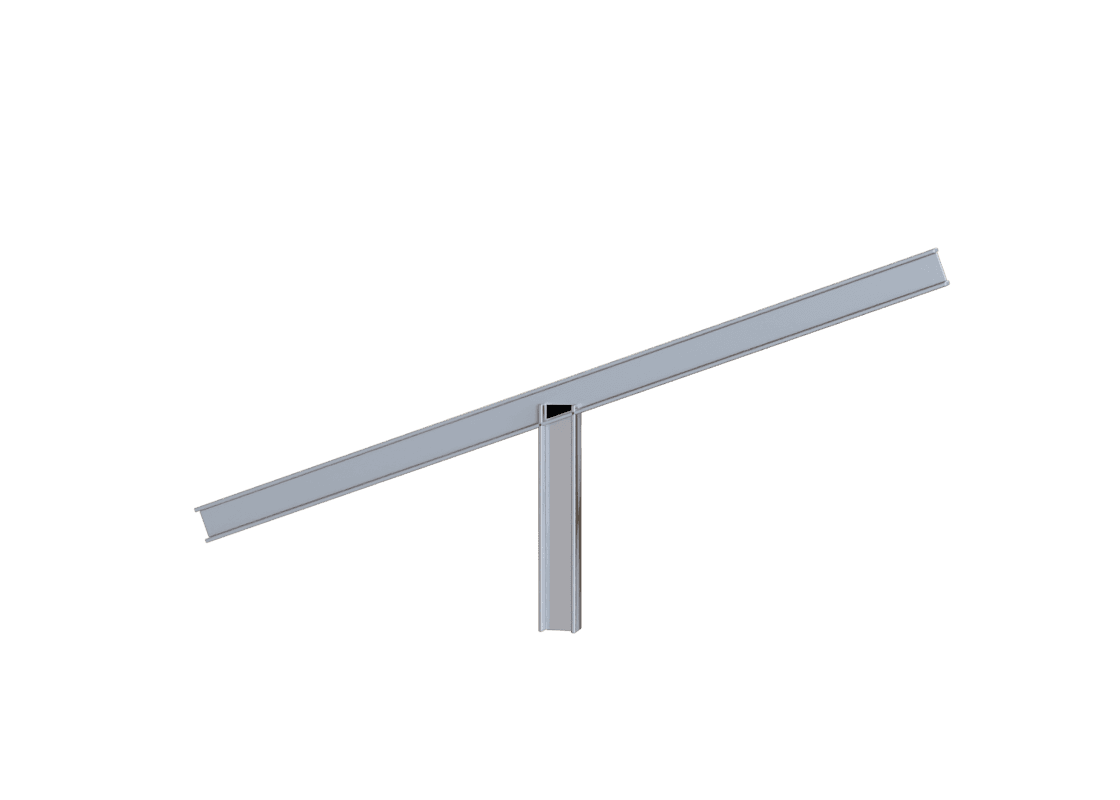

Type 1
Single Post
Constrained sites and difficult terrain — minimal foundations.

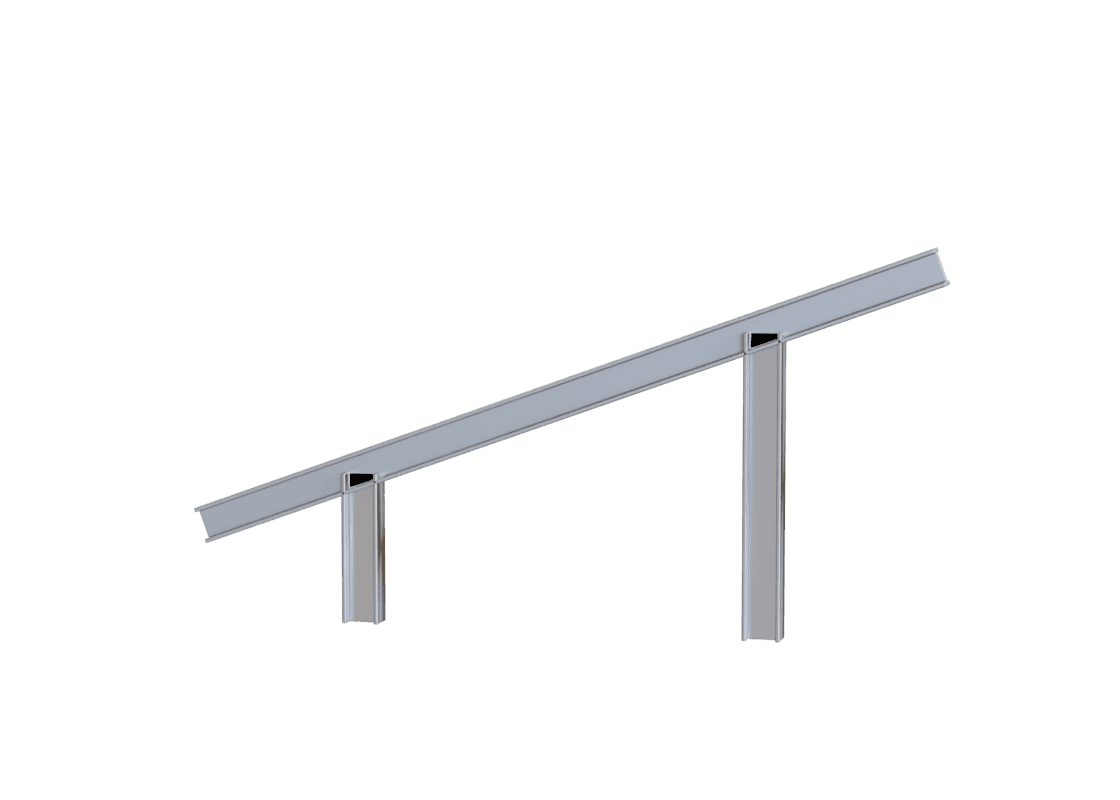

Type 2
Twin Post
The standard for open-field arrays — strength and stability across many configurations.

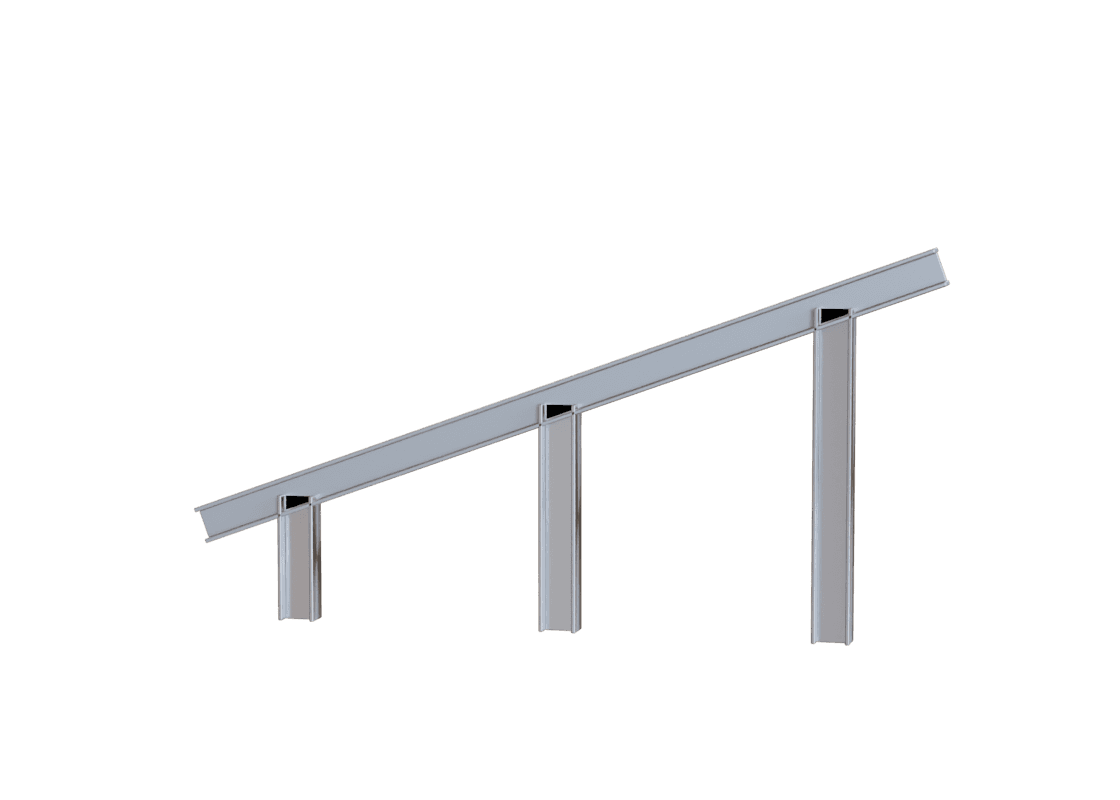

Type 3
Triple Post
Larger table sizes, varying layouts and ground conditions.
Foundations for any terrain
The foundation route is selected per site — hard, soft or rocky ground, and locations where piles cannot be driven.
Driven pile
Driven steel piles for suitable ground — fast and cost-effective.
Ground screw
Screw foundations where ground conditions or removability require them.
Concreted pile
Concreted posts where soils need enhanced pull-out capacity.
Ballasted
Non-penetrating ballast for capped or sensitive ground.
Anchored
Anchor systems where piles cannot be driven.
Direct fix
Fixed direct to existing slabs and engineered surfaces.
Engineering
Ground & surveys
Geotechnical and topographical data informs the design where available.
Wind & snow loading
UK loading parameters applied per structure.
Steel & coating
Structural steel with galvanised or coated finish specified to the site environment.
Foundation design
Reactions and interfaces provided for the project's foundation design.
Site-specific structural engineering and verification can be coordinated with UK engineers where the project requires it.
