Commercial Rooftop Mounting Systems
Mounting systems for metal and flat commercial roofs, supplied on a project basis with rails, clamps and fixings specified to the roof and module.
Roof-parallel rail systems for trapezoidal and standing-seam profiles, and ballasted tilted or east-west arrangements for flat roofs — with zero roof penetration and loads assessed and spread to protect the roof.
Metal & flat roofs
Zero-penetration options
Loads assessed per roof
Configurations
The mounting arrangement is selected against the roof covering, available load reserves and the project’s yield target.
Type 1

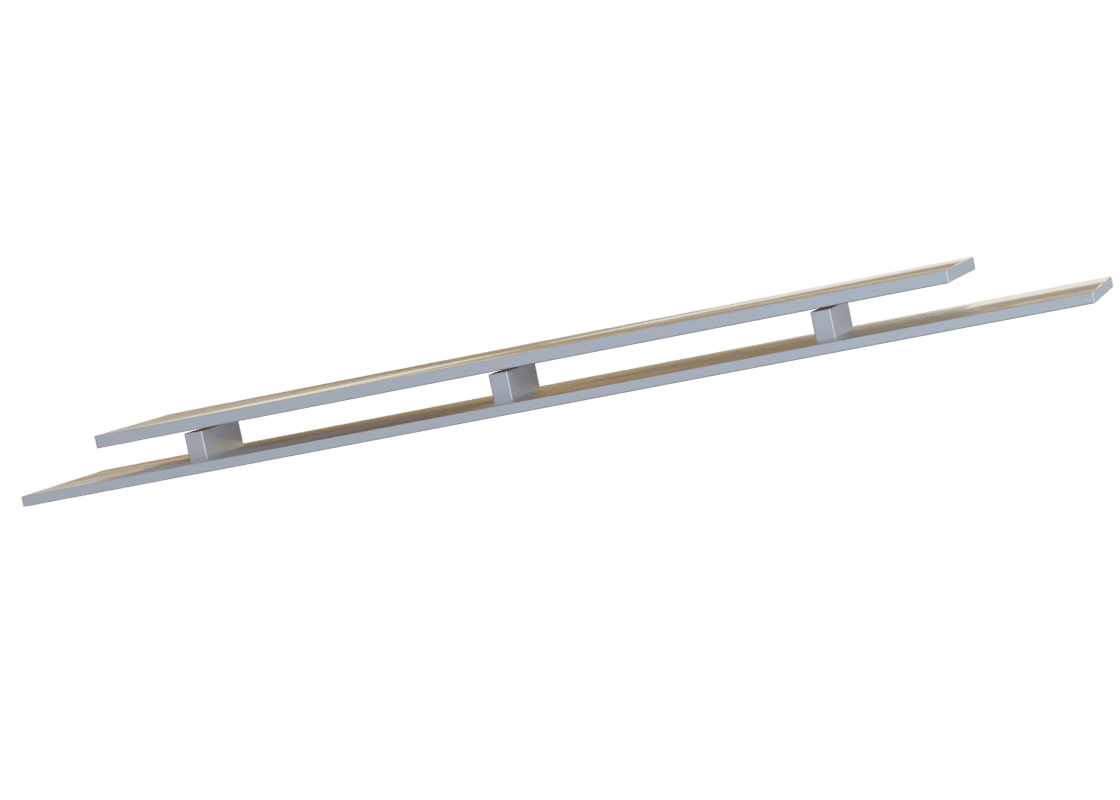

Metal Roof — Roof-Parallel
Rail and short-rail systems fixed to trapezoidal or standing-seam profiles, modules parallel to the roof.
Type 2

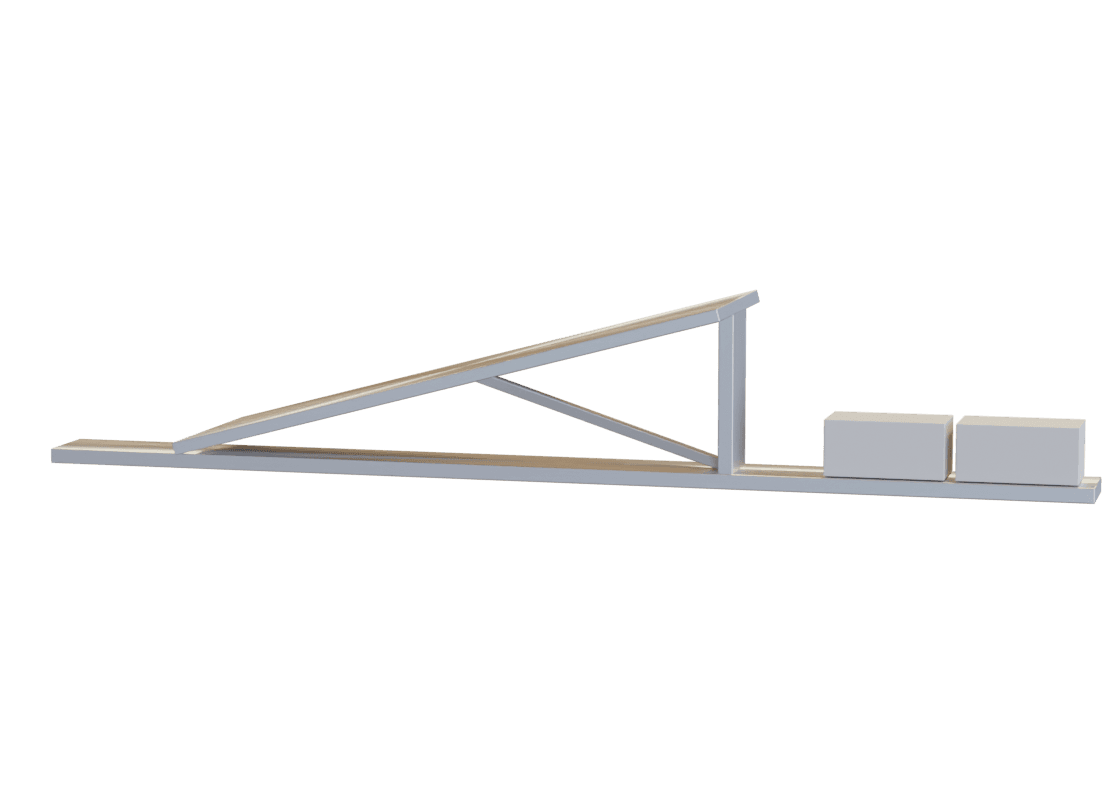

Flat Roof — Tilted
Ballasted tilted arrangements for maximum yield on flat roofs — no roof penetration.
Type 3

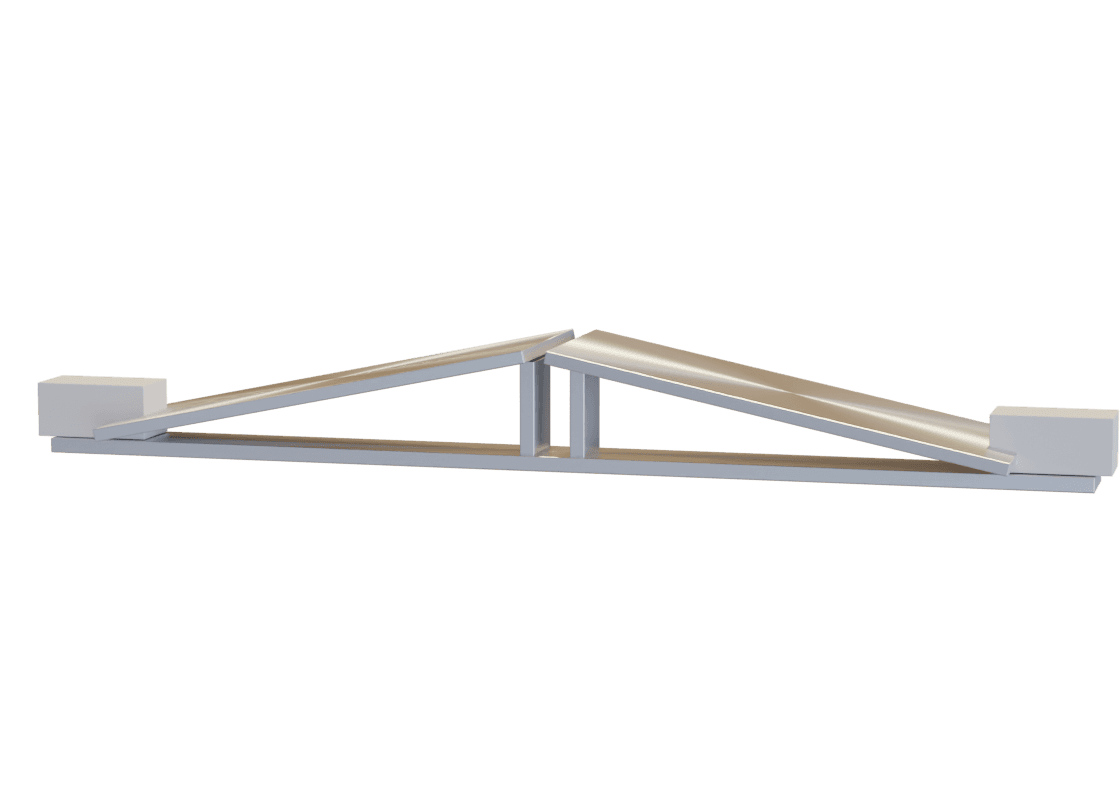

Flat Roof — East-West
Ballasted east-west arrangements for maximum module count and even generation.
Specified to the roof and the module
Supplied per project — roof type, module and layout — rather than sold as individual catalogue components.
Trapezoidal metal
Short-rail and rail arrangements fixed to trapezoidal profiles.
Standing seam
Non-penetrating seam clamps that preserve the roof covering.
Flat roof ballast
Ballasted systems with zero roof penetration.
Module clamps
Clamps specified to the module frame and layout.
Load spreading
Ballast and point loads spread to protect the roof structure.
Documentation
Layout, ballast plan and QA documentation per project.
Engineering
Roof assessment
Covering, structure and load reserves considered per project.
Wind & snow loading
UK loading parameters applied per roof.
Layout & ballast
Array layout and ballast plan developed to spread loads safely.
Module interface
Rails and clamps configured to the specified module.
Structural checks and verification can be coordinated with UK engineers where the project requires it.
